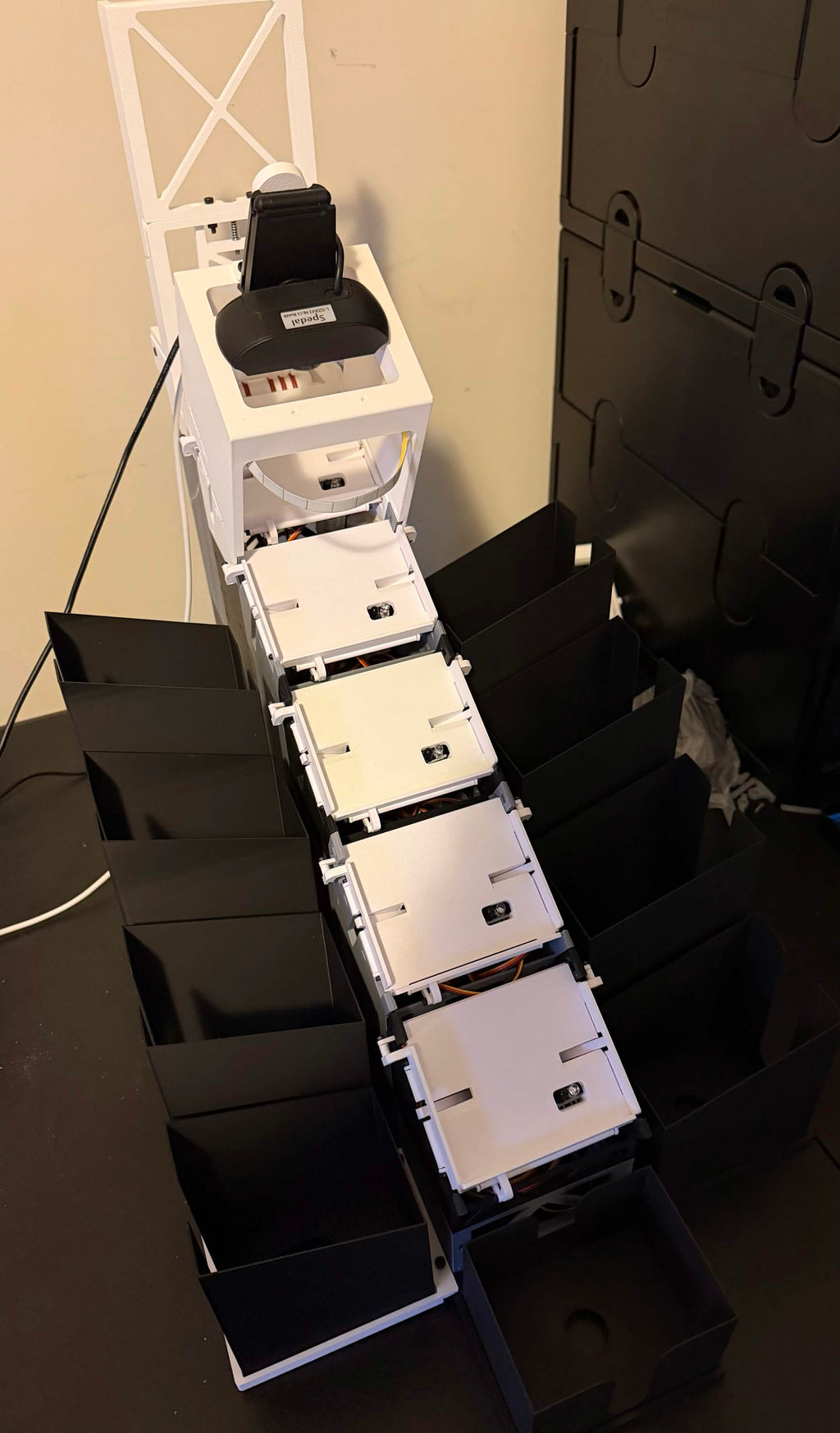

Standard Sorter Kit
3 Sorting Modules
$149.99
Skip to product information
Standard Sorter Kit
$149.99
These are made to order, restocks every Sunday evening CST.
This does not come with the 3D printed housing, webcam, or power supply! Please refer to the build guide (https://mault.xyz/build) for recommendations.
If you're ordering from outside the US, please consider adding the extra parts, it's not feasible to ship replacement parts due to shipping costs.
This kit is 3 sorting module kits, 1 feeder module kit, and the brains to make it all work.
The ESP32 S3 comes pre-flashed with the firmware, so you do not need to do that! You may have an update and that can be done through the web app.
What's Included:
| Item | Quantity 3 | Quantity 5 |
|---|---|---|
| ESP32 S3 | 1 | - |
| PCA9685 - Servo Control Board | 1 | - |
| SG90 micro servo, 180 degree | 9 | 15 |
| MG90s servo, continuous rotation | 1 | - |
| Reflective/obstacle IR sensor module | 4 | - |
| DC barrel jack | 1 | - |
| 20mm ID 26mm OD 3mm Width O-Ring | 6 | - |
| 9.2mm ID 14mm OD 2.4mm Section O-Ring (new hopper only) | 4 | - |
| M3x6 screw | 24 | 32 |
| M3 nut | 8 | 12 |
| M3 washer | 2 | - |
| M3x8 screw | 2 | - |
| M3x25 screw | 1 | - |
| 7/32" x 11/16" spring | 1 | - |
| M2x6 screw | 59 | 93 |
| M2x8 screw | 6 | 10 |
| Servo horn screw | 10 | 16 |
| Servo mounting screw | 20 | 32 |
| Pre Terminated Cables | - | - |
| Wago connectors | 2 | - |
| 1/4"-20 camera mount screw | 1 | - |
